== The Sample code source you can download from ==
== The Sample code source you can download from ==
 +
<!--
 +
<Google Drive>
Source file:
Source file:
-
[ftp://ftp.lex.com.tw/Engineer/SoftSupport/AP_Module/F81966_LPC_DIO/Linux_console/F81966_DIO_v1.1_Src_L.tar.gz F81966_DIO_v1.1_Src_L.tar.gz]
+
[https://drive.google.com/file/d/1f7XxtDyAPiZIoMAg6w_CfBeCpruAckvE/view?usp=sharing F81966_DIO_v1.1L_Src]
Binary file:
Binary file:
-
[ftp://ftp.lex.com.tw/Engineer/SoftSupport/AP_Module/F81966_LPC_DIO/Linux_console/F81966_DIO_v1.1_Bin_x64_L.tar.gz F81966_DIO_v1.1_Bin_x64_L.tar.gz]
+
[https://drive.google.com/file/d/1DxCovn0yHvrt6kSfOJNwwG9bAl2F0sAp/view?usp=sharing F81966_DIO_v1.1L_Bin_x86]
-
[ftp://ftp.lex.com.tw/Engineer/SoftSupport/AP_Module/F81966_LPC_DIO/Linux_console/F81966_DIO_v1.1_Bin_x32_L.tar.gz F81966_DIO_v1.1_Bin_x32_L.tar.gz]
+
[https://drive.google.com/file/d/1MKdBXIAN3zo4u4vFwDFEu3nxReMsZA2U/view?usp=drive_link F81966_DIO_v1.1L_Bin_x64]
F81966 Libary :
F81966 Libary :
-
[ftp://ftp.lex.com.tw/Engineer/SoftSupport/AP_Module/F81966_LPC_DIO/Linux_console/F81966_LIB_v1.1_x64_L.tar.gz F81966_LIB_v1.1_x64_L.tar.gz ]
+
[https://drive.google.com/file/d/1YNIuL2erP1zZbBHSq8a-yj4PtVyBeQgS/view?usp=sharing F81966_LIB_v1.1L_x86]
-
[ftp://ftp.lex.com.tw/Engineer/SoftSupport/AP_Module/F81966_LPC_DIO/Linux_console/F81966_LIB_v1.1_x32_L.tar.gz F81966_LIB_v1.1_x32_L.tar.gz ]
+
[https://drive.google.com/file/d/1Pg53LOhnpjrsgptcKI10wfQOhsUxYE5J/view?usp=drive_link F81966_LIB_v1.1L_x64]
 +
-->
-
== Introduction F81966 DIO==
+
<FTP>
-
[[Image:F81966_Linux_help.png]]<br>
+
-
#Start test Button,Send bits one by one and one by one receive
+
Source file:
-
#CIO116 mode for CIO116 module use
+
[ftp://ftp.lex.com.tw/Engineer/SoftSupport/AP_Module/F81966_LPC_DIO/Linux_console/F81966_LPC_Utility_L_src.zip F81966_LPC_Utility_L_src]
-
#Set time countdown,If the end of the countdown, the trigger signal to reboot
+

-
#Enable loop ，Continuously reset the WDT to ensure that when the system is normal, the restart signal will not be triggered
+
Binary file:
 +
[ftp://ftp.lex.com.tw/Engineer/SoftSupport/AP_Module/F81966_LPC_DIO/Linux_console/F81966_LPC_Utility_L.zip F81966_LPC_Utility]
 +

 +
F81966 Libary :
 +
[ftp://ftp.lex.com.tw/Engineer/SoftSupport/AP_Module/F81966_LPC_DIO/Linux_console/libF81966_bin_x86_64.zip libF81966_bin_x86_64]
 +

 +
== MB Support List==
 +
<!--box uid=f777871962f1c0432784d4e0e73802b8.1125.E5be5052285e42-->
 +
<!--
 +
******************************************************************************************
 +
*
 +
* ** PLEASE DON'T EDIT THIS TABLE DIRECTLY. Use the edit table link under the table. **
 +
*
 +
****************************************************************************************** -->
 +
{|class = 'sortable' border="2" cellpadding="4" cellspacing="0" style="margin: 1em 1em 1em 0; border: 1px #aaa solid; border-collapse: collapse;" id='506'
 +
|- bgcolor = #ccccff
 +
!Elkhart Lake!!Raptor Lake
 +
|-
 +
|
 +
2I640CW
 +
|
 +
3I130TW
 +
|-class='sortbottom'
 +

 +
|}
 +
[{{SERVER}}/lexwiki/index.php?title=Special:TableEdit&id=f777871962f1c0432784d4e0e73802b8.1125.E5be5052285e42&page=1125&pagename={{FULLPAGENAMEE}} edit table]
 +
<!--box uid=f777871962f1c0432784d4e0e73802b8.1125.E5be5052285e42-->
 +

 +

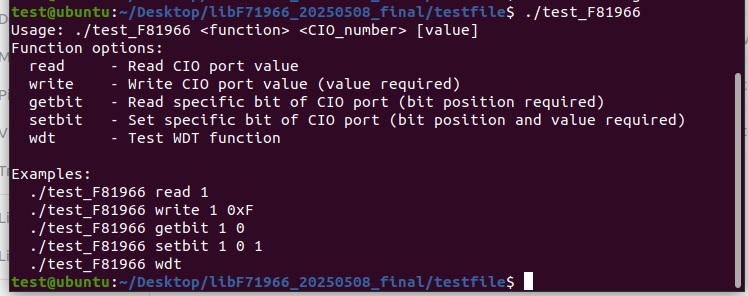

== Introduction F81966 CIO==
 +
[[Image:F81966_Linux_help.jpg]]<br>
 +

 +
#Use GET_CIO_INPUT to get the digital input data
 +
#Use SET_CIO_OUTPUT_DATA to set digital output data
 +
#Single bit setting can use SetCIOXBit0, SetCIOXBit1
 +
#Read a single bit using GetCIOXBit
 +
# Enable WDT and continuously reset WDT to ensure that the restart signal will not be triggered when the system is normal
-
== F81966_DLL Function ==
+
== libF81966.so Function ==
<pre>
<pre>
-
bool F81966_OPEN();
+
bool F81966_OPEN();
-
void F81966_Init();
+
void F81966_Init();
-
void F81966_LPC_Write(BYTE LDNData, BYTE reg, BYTE value);
+

-
BYTE F81966_LPC_Read(BYTE LDNData, BYTE reg);
+
BYTE GET_CIO_INPUT(int CIO_Number);
-
void F81966_LPC_Digital_Write_LOW(BYTE byteValue);
+
BYTE GET_CIO_OUTPUT_DATA(int CIO_Number);
-
void F81966_LPC_Digital_Write_HIGH(BYTE byteValue);
+
BYTE SET_CIO_OUTPUT_DATA(int CIO_Number, BYTE byteValue);
-
BYTE F81966_LPC_Digital_Read_LOW();
+

-
BYTE F81966_LPC_Digital_Read_HIGH();
+
BYTE GetCIOXBit(int CIO_Number, BYTE bitPosition);
-
void F81966_LPC_Set_WDT_Enable(BYTE byteValue);
+
BYTE SetCIOXBit0(int CIO_Number,BYTE byteValue, BYTE bitPosition);
-
void F81966_LPC_Set_WDT_Disable();
+
BYTE SetCIOXBit1(int CIO_Number,BYTE byteValue, BYTE bitPosition);
-
void EntryLPC();
+

-
void ExitLPC();
+
void F81966_LPC_Set_WDT_Enable(BYTE byteValue);
 +
void F81966_LPC_Set_WDT_Disable();
 +

</pre>
</pre>
-
=== Digital Input/Ooutput test===
+
=== test_F81966 CIO Input/Ooutput ===
-
[[size 200%]]正常大小的200%[[/size]]
+
-
[[Image:F81966_io_define.jpg]]<br>
+
'''sample code'''
'''sample code'''
<pre>
<pre>
-
Set CIO1 CIO2 Digital Output all high
+
Set CIO1 Digital Output all bit low
-
F81966_LPC_Digital_Write_LOW(256);
+
test_F81966 write 0xf;
-
Set CIO1 CIO2 Digital Output all low

-
F81966_LPC_Digital_Write_LOW(0);

-
Set CIO1 Digital Output bit 4 high
+
Set CIO2 Digital Output all bit low
-
F81966_LPC_Digital_Write_LOW(16);
+
test_F81966 write 2 0x0;
-
Set CIO2 Digital Output bit 10 high
+
Set CIO3 Digital Output all bit high
-
F81966_LPC_Digital_Write_HIGH(4);
+
test_F81966 write 3 0xf;
 +

 +
Get CIO4 Digital Input
 +
test_F81966 read 4;
</pre>
</pre>
<pre>
<pre>
-
Read Din
+
read bit position
-
value = F81966_LPC_Digital_Read_LOW();
+
test_F81966 getbit 1 1
 +

 +
write bit position
 +
test_F81966 setbit 1 0 1
</pre>
</pre>
=== Watch Dog test===
=== Watch Dog test===
'''sample code'''<br>
'''sample code'''<br>
 +
test_F81966 getbit 1 1
<pre>
<pre>
Set WDT 10 sec
Set WDT 10 sec
-
F81966_LPC_Set_WDT_Enable(10);
+
test_F81966 wdt enable 10;
</pre>
</pre>
<pre>
<pre>
Disable WDT
Disable WDT
-
F81966_LPC_Set_WDT_Disable();
+
test_F81966 wdt disable;
</pre>
</pre>
